Hikvision 6-Line Cameras
____________________________________________________________________
Release date: 2015
Camera types: Box, Fisheye, Covert, Intelligent
____________________________________________________________________
The Hikvision 6-Line family of cameras were released in 2015____________________________________________________________________
Release date: 2015
Camera types: Box, Fisheye, Covert, Intelligent
____________________________________________________________________
It includes a range of cameras including:
- Box Cameras
- Fisheye Cameras
- Covert Cameras
- Intelligent Cameras
- Mobile Cameras
- The key features of this family
- Links to the product pages of the models we offer
- Where to find the most up to date firmware for your camera
Darkfighter Box Cameras -
- H.264 video compression
- SD Card slot
- Up to 3 streams -
- Main stream/sub stream/third stream
- Offers flexibility with bandwidth without sacrificing video quality
- Smart Features -
- 6 behaviour analyses -
- Line crossing detection
- Intrusion detection
- Region entrance
- Region exiting
- Unattended baggage
- Object removal
- 4 exception detections -
- Scene change
- Sudden audio increase/decrease
- Audio loss
- Defocus
- 1 recognition -
- Face recognition
- 1 statistic function -
- Object counting
- Smart recording; edge recording and dual-VCA
- Smart encoding; low bit rate, low latency and region of interest
- 6 behaviour analyses -
- Dark Fighting Image Enhancements -
- Back light compensation (BLC)
- 3D digital noise reduction (3D DNR)
- Defog
- Electronic image stabilization (EIS)
- 120dB wide dynamic range (WDR)
- Region of Interest (ROI)
- PoE or power supply -
- Every camera has the option to be powered by either PoE or a 12VDC PSU
- PoE offers a simple solution which allows power and data to be carried down one network cable
- H.264 video compression
- SD Card slot
- 360° field of view
- Audio (selected models) -
- Some cameras are available with
- Two-way audio
- Audio I/O
- Some cameras are available with
- 2 Streams -
- Main stream/sub stream
- Offers flexibility with bandwidth without sacrificing video quality
- Built in IR -
- Effective up to 15m
- IP66 Rated Weatherproof Housing -
- IP66 = Able to protect against powerful water jets
- For more information please see our video on Understanding IP & IK Ratings
- IK10 Rated Vandal Resistant Housing (Selected models) -
- IK10 = resists 20 joules of impact energy
- Smart Features -
- 2 behaviour analyses -
- Line crossing detection
- Intrusion detection
- 1 statistic function -
- Heat map
- Smart recording; edge recording and dual-VCA
- Smart encoding; low bit rate, low latency and region of interest
- 2 behaviour analyses -
- Wide Dynamic Range -
- Wide dynamic range improves image quality by balancing the lighting in an image where there may be contrasting areas of intense dark and light
- For more information please watch our informative video about Wide Dynamic Range and other datasheet terms.
- PoE or power supply -
- Every camera has the option to be powered by either PoE or a 12VDC PSU
- PoE offers a simple solution which allows power and data to be carried down one network cable
- Designed to be small and compact (Dimensions: 78mm x 105mm x 32mm)
- Single or dual lens options
- H.264 video compression
- SD card slot
- 3 Streams -
- Main stream/sub stream/third stream
- Offers flexibility with bandwidth without sacrificing video quality
- Alarm trigger -
- Motion detection
- Face detection
- Dynamic analysis
- Tampering alarm
- Network disconnect
- IP address disconnect
- Storage full
- Storage error
- Intrusion detection
- Line crossing detection
- Defocus detection
- Audio exception detection
- Scene change detection
- PoE or power supply -
- Every camera has the option to be powered by either PoE or a 12VDC PSU
- PoE offers a simple solution which allows power and data to be carried down one network cable
- People counting cameras available
- Face capture cameras available
- Behaviour analysis cameras available
- Data-analyzer solution
- H.264 video compression
- SD card slot
- 3 Streams -
- Main stream/sub stream/third stream
- Offers flexibility with bandwidth without sacrificing video quality
- Motorised zoom lenses (selected models)
- EXIR LEDs
- EXIR (EXtended InfraRed) LEDs
- No IR reflection or bleeding
- Better IR coverage
- Less heat and problems with insects or spiders
- Take a look at our post explaining exactly what an EXIR camera is for more information
- IK10 rated vandal resistant housing (Selected models)
- IK10 = resists 20 joules of impact energy
- PoE or power supply
- Every camera has the option to be powered by either PoE or a 12VDC PSU
- PoE offers a simple solution which allows power and data to be carried down one network cable
- Wide Dynamic Range
- Wide dynamic range improves image quality by balancing the lighting in an image where there may be contrasting areas of intense dark and light
- For more information please watch our informative video about Wide Dynamic Range and other datasheet terms.
--------------------------------------------------------------------------------------
Box
2MP - DS-2CD6026FHWD-A
--------------------------------------------------------------------------------------
Fisheye
3MP - DS-2CD6332FWD-IZS
6MP - DS-2CD6362F-IVS
12MP - DS-2CD63C2F-IVS
--------------------------------------------------------------------------------------
Covert
1.3MP - DS-2CD6412FWD-C1
2MP - DS-2CD6424FWD-20/2M
--------------------------------------------------------------------------------------
Intelligent

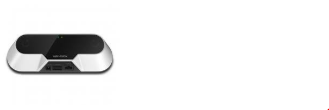

People Counting - iDS-2CD6810F/C
--------------------------------------------------------------------------------------
Finding Firmware
These 6-Line cameras use firmware from the R1, R3, and R4 platforms.
To find the latest firmware for your camera please see our thread on finding the latest Hikvision firmware for your camera.
If you have any questions, please let us know
